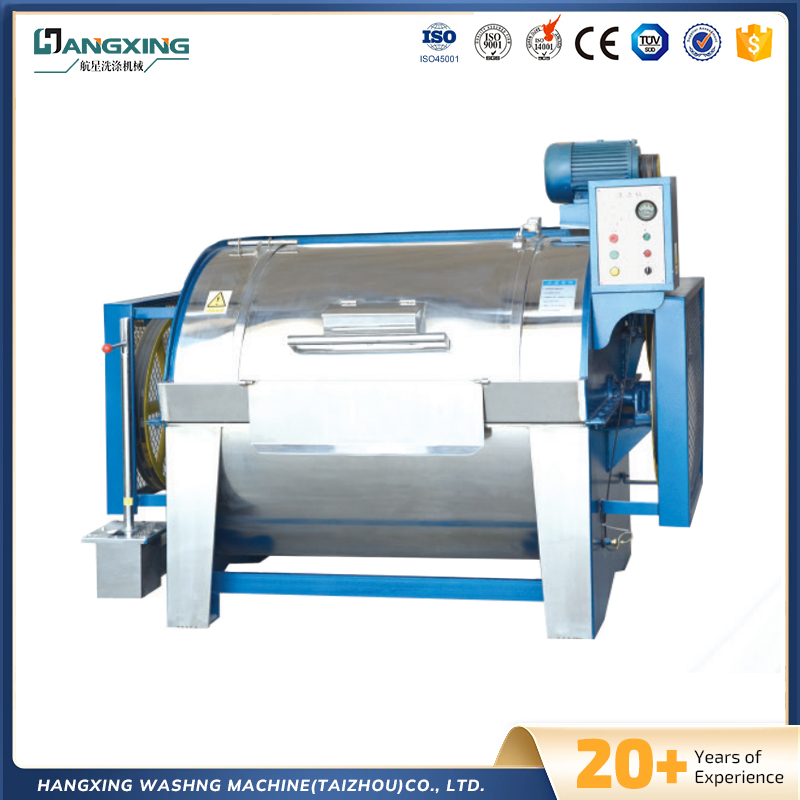

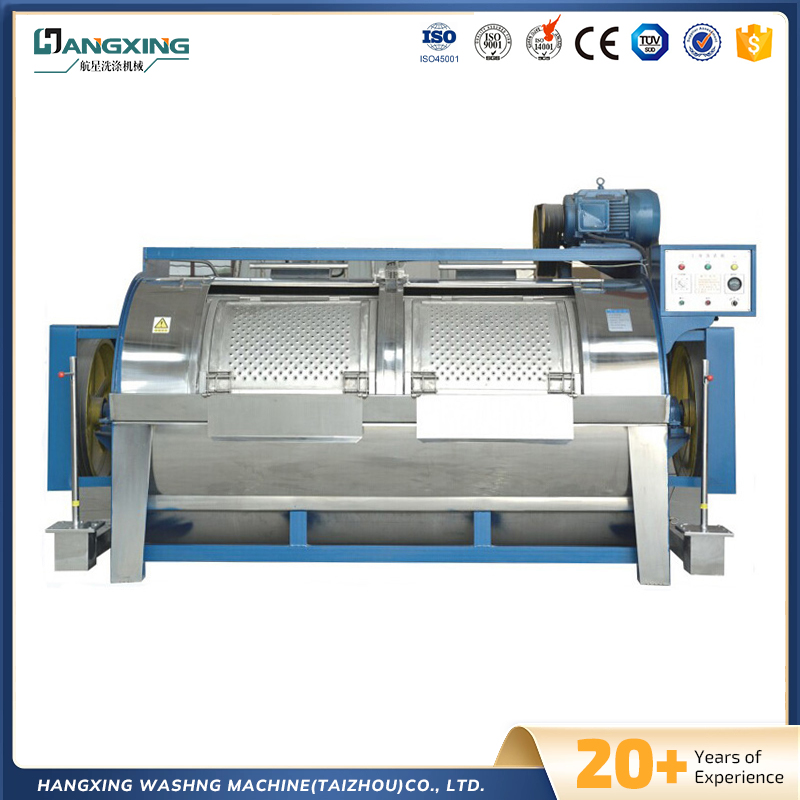

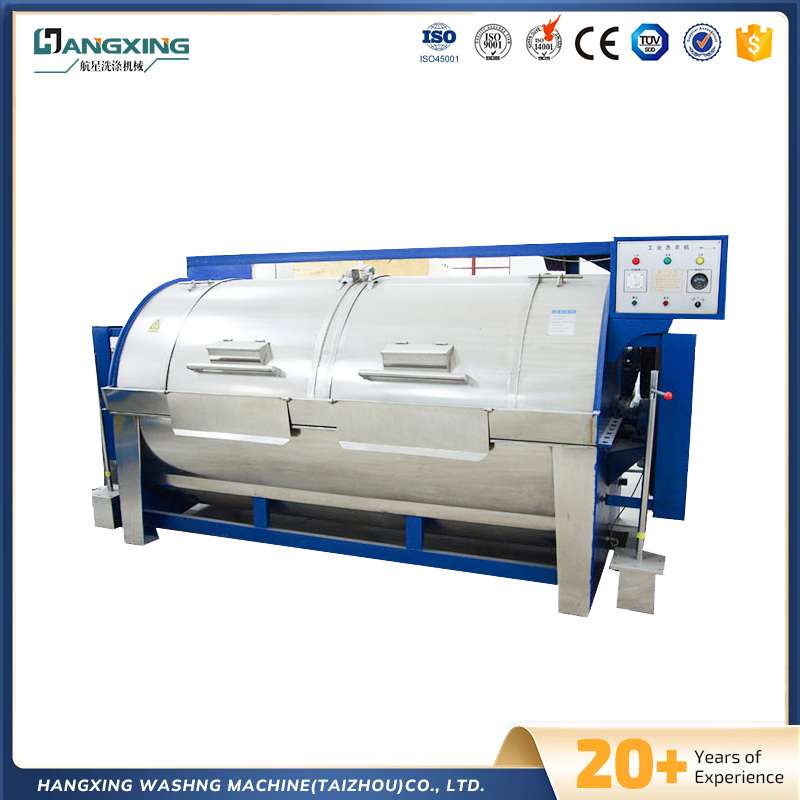

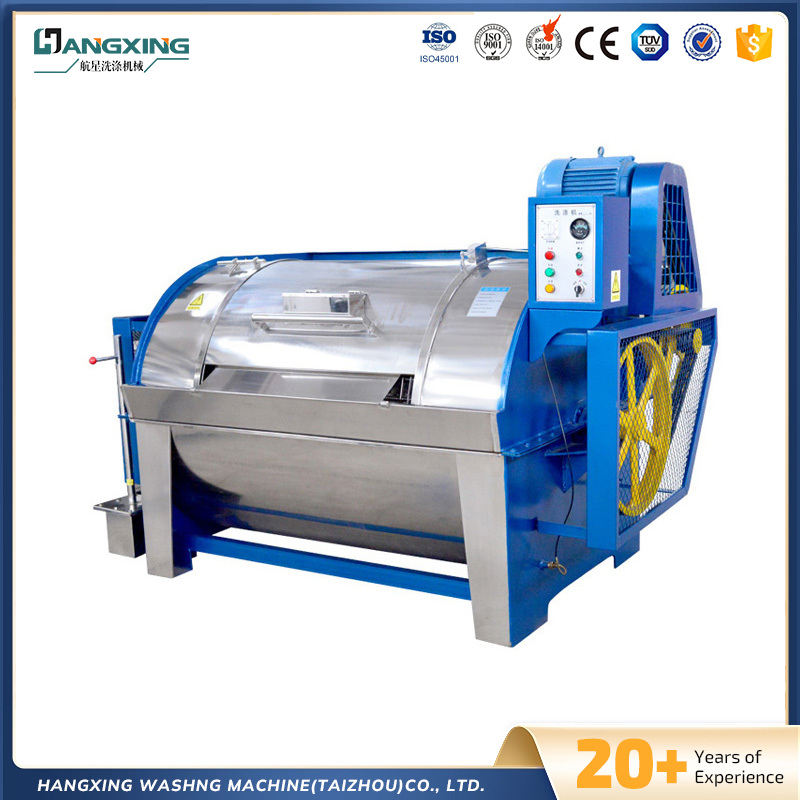

Full-Automatic Industrial Horizontal Washing Machine

Use: GX type of washing machines have features of compact construction, convenient operation and maintenance, reasonable design, stable running, long service life, and so on. Its main components, the tan,k, and the shell are all made of high-quality stainless steel. Primarily be applicable to water-washing clothing, and also used for cotton, wool, and chemical fabric goods, etc. it is the ideal equipment for the clothing industry, hotels, hospitals, chemical plants, food, and other industrial and mining enterprises.

Inquiry Us Hangxing Washing Machinery (Taizhou) Co., Ltd.

● Inner & outer casks are made of high-quality stainless steel, with good corrosion resistance.
● Reasonable design, stable running, long service life.
● Automatic timing, large washing capacity, high efficiency.
● Low noise and vibration.
● For your choice, there are two kinds of structures: box style or bridge style.
● It can be used to wash cotton, wool, linen, chemical fiber, and other textile.

Type	Max. washing capacity (kg)	Drum dimensions (mm)	Speed (r/min)	Power (Kw)	Steam pressure (Mpa)	Steam Consumption (kg)	Overall dimensions (mm)	Whole weight (kg)
Type	Max. washing capacity (kg)	Drum dimensions (mm)	Speed (r/min)	Power (Kw)	Steam pressure (Mpa)	Steam Consumption (kg)	Overall dimensions (mm)	Whole weight (kg)
GX-15	15kg	φ 520x620	46	0.75	0.3-0.6	15kg	1100x1100x1000	220
GX-20	20kg	φ 550x660	46	0.75	0.3-0.6	15kg	1170x1100x1080	290
GX-30	30kg	φ 660x800	36	1.1	0.3-0.6	18kg	1500x1190x1180	400
GX-50	50kg	φ 800x980	36	1.5	0.3-0.6	20kg	1700x1320x1350	500
GX-70	70kg	φ 950x1220	34	2.2	0.3-0.6	30kg	1980x1530x1520	700
GX-100	100kg	φ 960x1420	34	3	0.3-0.6	45kg	2200x1400x1590	960
GX-150	150kg	φ 1060x1650	33	4	0.3-0.6	50kg	2480x1550x1700	1150
GX-200	200kg	φ 1080 x2000	32	5.5	0.3-0.6	60kg	2950x1700x1750	1500
GX-250	250kg	φ 1200x2280	30	7.5	0.3-0.6	70kg	3200x1800x2200	1950
GX-300	300kg	φ 1300x2280	28	7.5	0.3-0.6	80kg	3200x2000x2300	2300
GX-400	400kg	φ 1220x3360	27	7.5	0.3-0.6	100kg	4100x2150x2350	3100
