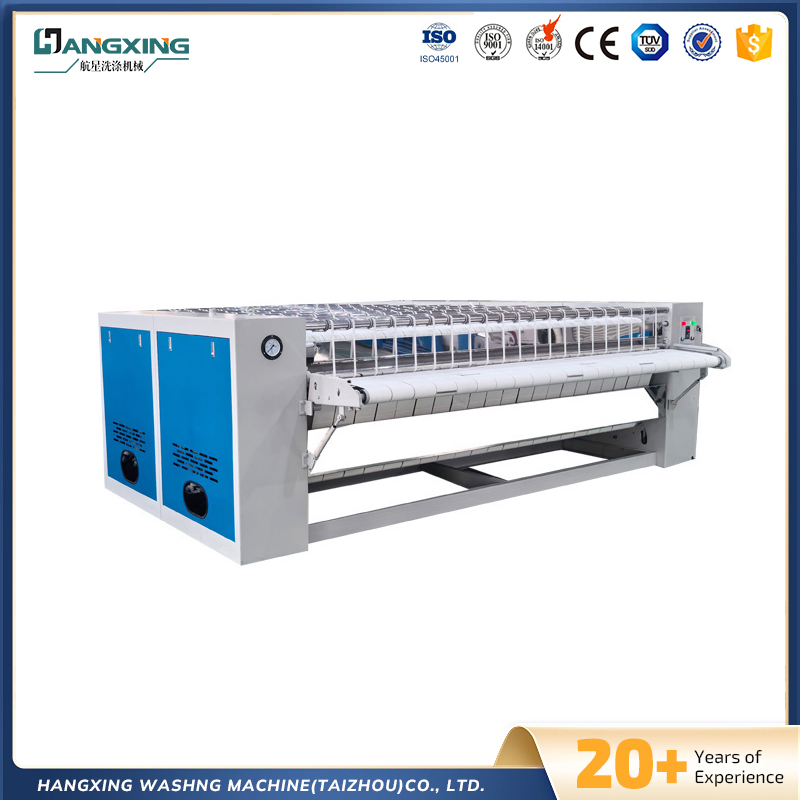

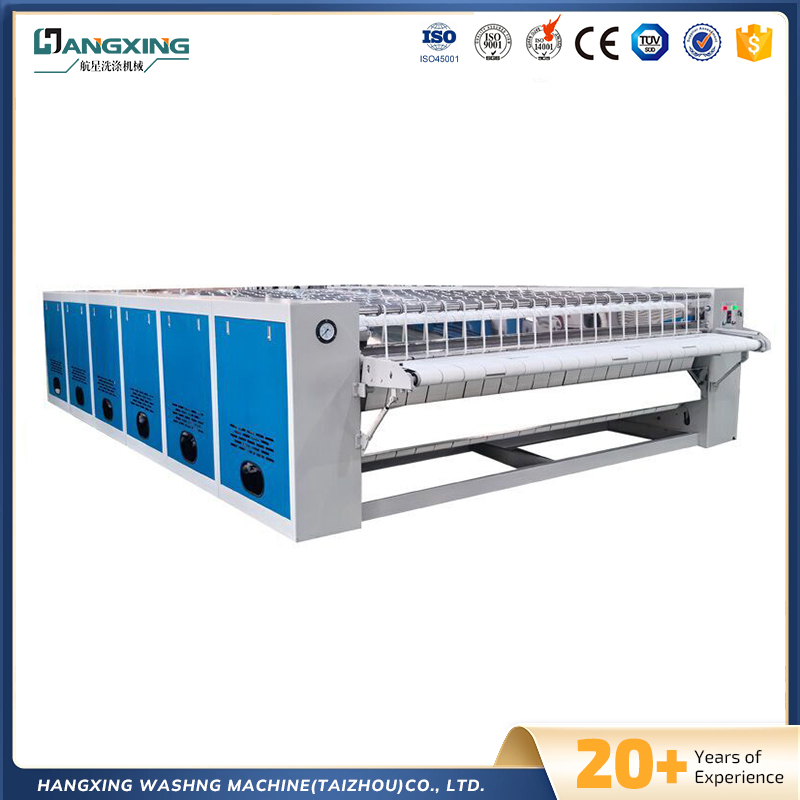

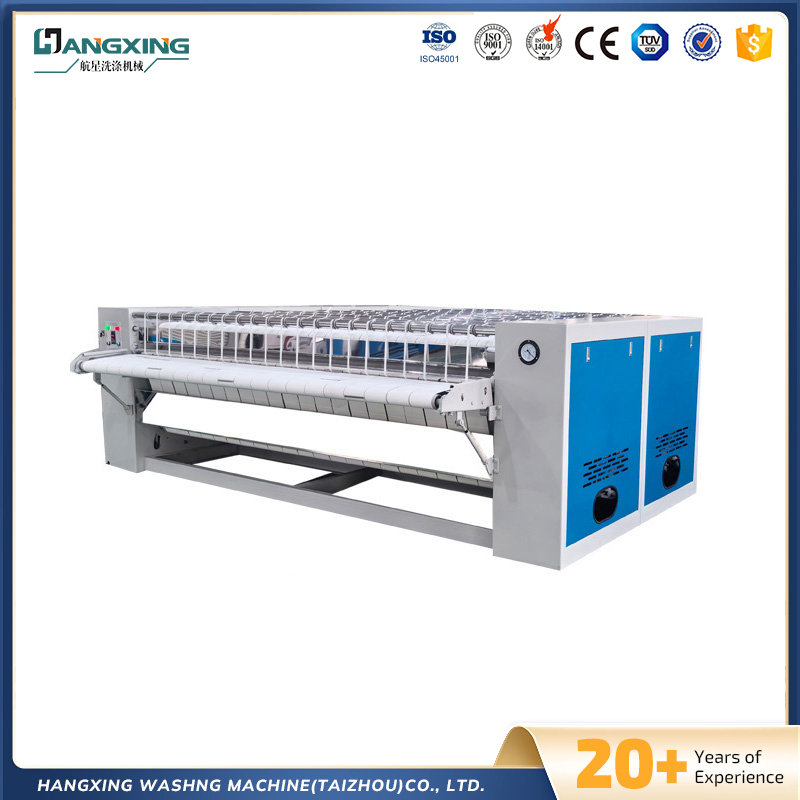

Automatic Single Rollers Double Rollers Ironing Machine

Short Introduction:
● Large roller diameter (φ 800mm), high thermal efficiency, high ironing speed.
● High-quality stainless steel roller, good corrosion resistance, high safety, long service life.
● With electrical heating and steam heating two models for users to choose from.
● The electric type uses energy energy-saving and durable quartz infrared ray heating system, while the steam type uses a stainless steel drying cylinder, ensuring long service life and uniform heating.
● ironing speed can be adjusted according to the thickness of the textile and steam supply status(stepless speed regulation). It has single, double, or triple rollers. ironing machine with four or five rollers can achieve high-speed ironing.
● Using a differential flexible feeding system can heighten the ironing effect. Advanced leak-proof, anti-corrosion technology, and safety protection device.
● It can be used to iron and drying bedspreads, quilt covers, tablecloths, carpets, and other textile.

Inquiry Us Hangxing Washing Machinery (Taizhou) Co., Ltd.

PREV：No previous article NEXT：Automatic Multi Rollers Ironing Machine

Performance Parameter

Name	Type
Name	TP I-1800	TP I-2500	TP I-2800	TP I-3000	TP II-2800	TP II-3000
Drum diameter (mm)	800	800	800	800	800	800
Max ironing width(mm)	1700	2400	2700	2900	2700	2900
Ironing speed(m/min)	0-15	0-15	0-15	0-15	0-20	0-25
ironing temperature(℃)	158	158	158	158	158	158
Steam pressure(MPa)	0.4-0.5	0.4-0.5	0.4-0.5	0.4-0.5	0.4-0.5	0.4-0.5
Steam Consumption(kg)	50	70	85	90	120	120
Motor power(kW)	0.75	0.75	0.75	1.1	1.5	1.5
Frequency converter power(kW)	0.75	0.75	0.75	1.5	1.5	1.5
Electric heating power(kW)	24	30	36	36	72	72
L(mm)	2800	3500	3800	4000	3800	4000
W(mm)	1300	1300	1300	1300	2200	2200
H(mm)	1360	1360	1360	1360	1360	1360
Machine weight(kg)	2000	2500	3100	3300	4000	4200
