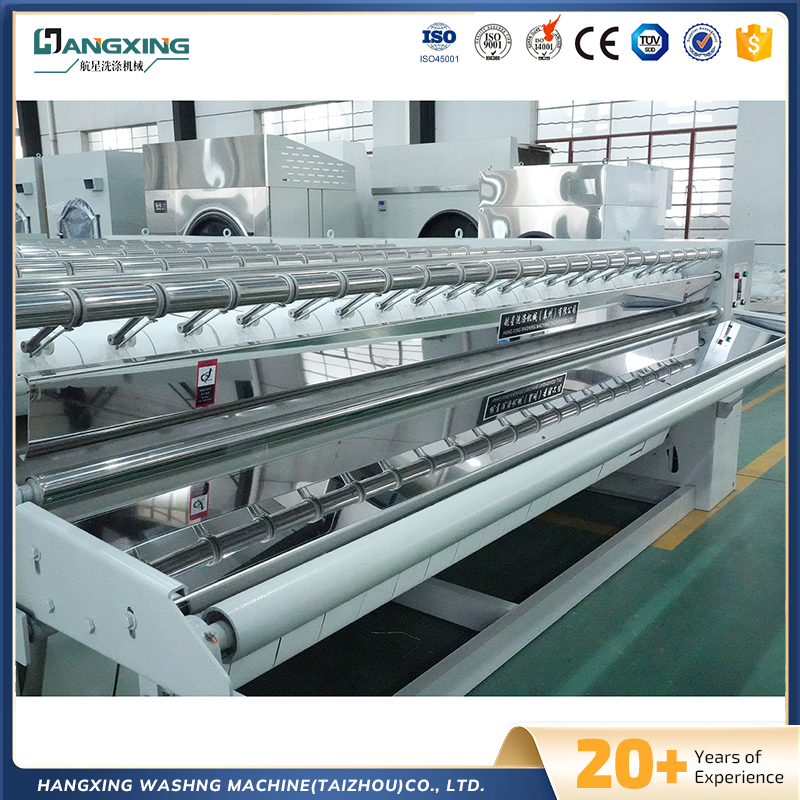

Automatic Multi Rollers Ironing Machine

● Large roller diameter (中800mm), high thermal efficiency, high ironing speed.
● High-quality stainless steel roller, good corrosion resistance, high safety, long service life.
● Electrical heating and steam heating are two models for users to choose from.
● The electric type uses energy energy-saving and durable quartz infrared ray heating system, while the steam type uses a stainless steel drying cylinder, ensuring a long service life and uniform heating.

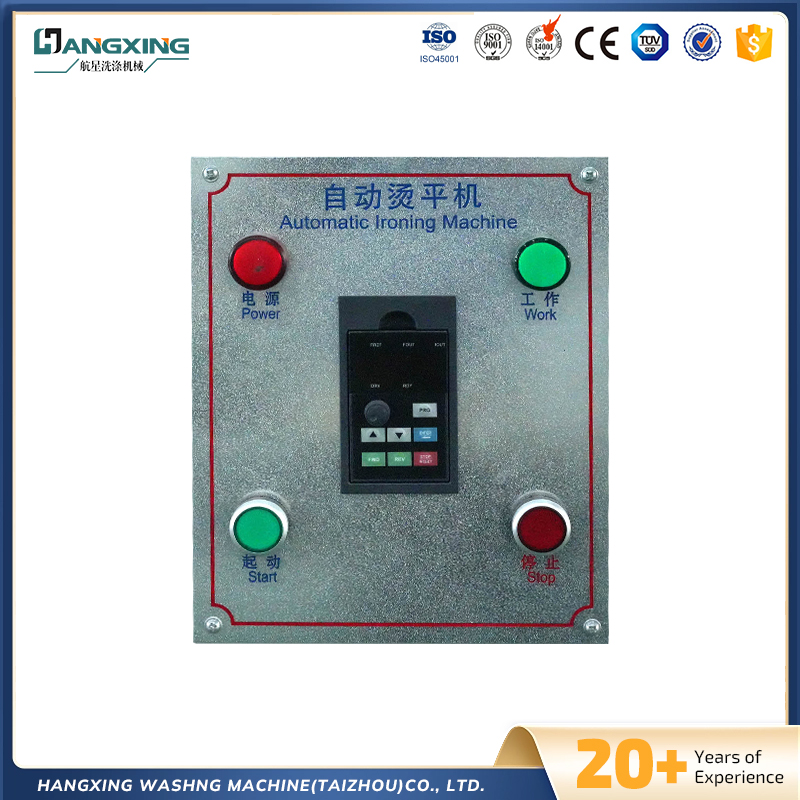

● ironing speed can be adjusted (stepless speed regulation) according to the thickness of the textile and steam supply status. It has single, double, or triple rollers. ironing machine with four, five, or six rollers can achieve high-speed ironing.
● Usina g differential flexible feeding system can heighten the ironing effect. Advanced leak-proof, anti-corrosion technology, and safety protection device.
● It can be used to iron and drying bedspreads, quilt covers, tablecloths, carpets, and other textile.

Inquiry Us Hangxing Washing Machinery (Taizhou) Co., Ltd.

PREV：Automatic Single Rollers Double Rollers Ironing Machine NEXT：No next article

Performance Parameter

Name	Type
Name	TP III-3000	TP IV-3000	TP V-3000	TP VI-3000
Drum diameter (mm)	800	800	800	800
Max ironing width(mm)	2900	2900	2900	2900
Ironing speed(m/min)	0-35	0-40	0-45	0-50
ironing temperature(℃)	158	158	158	158

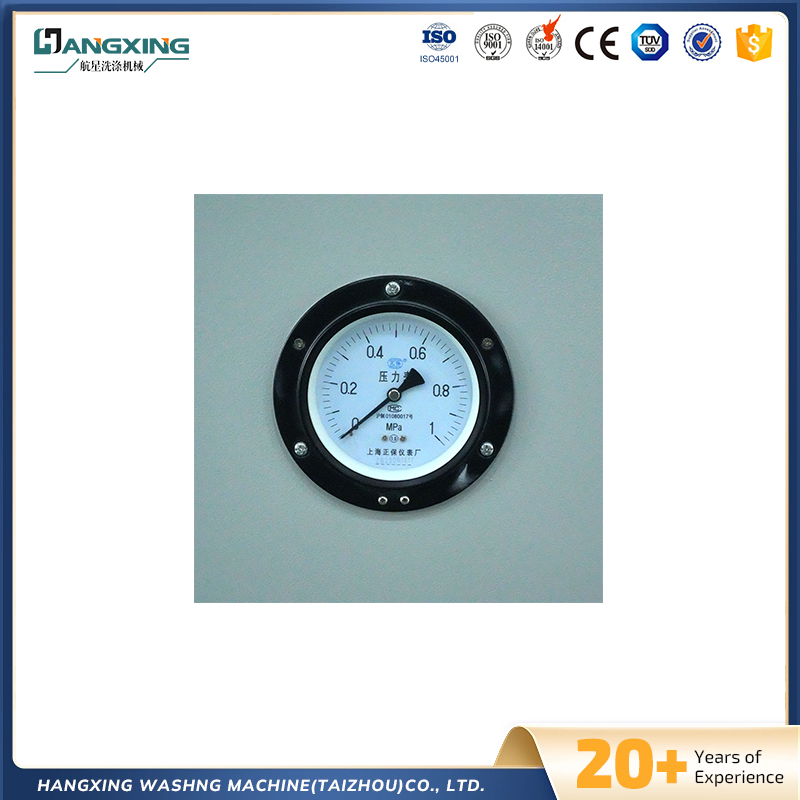

Steam pressure(MPa)	0.4-0.5	0.4-0.5	0.4-0.5	0.4-0.5
Steam Consumption(kg)	260	350	440	530
Motor power(kW)	2.2	3	4	5.5
Frequency converter power(kW)	2.2	3	4	5.5
Electric heating power(kW)	108	144	180	216
L(mm)	4100	4100	4100	4100
W(mm)	3140	4060	5000	5920
H(mm)	1360	1360	1360	1360
Machine weight(kg)	5800	7400	9000	10600

Message Feedback

ABOUT HANGXING

Hangxing Washing Machinery (Taizhou) Co., Ltd.

As China Automatic Multi Rollers Ironing Machine Manufacturers and Automatic Multi Rollers Ironing Machine Factory, Hangxing Washing Machinery (Taizhou) Co., Ltd. is a wholly foreign-owned enterprise, located in Taizhou City, Jiangsu Province, the hometown of Peking Opera master Mei Lanfang, covering an area of nearly 20,000 square meters.

Our company is the production of clothing washing machinery, hotels, hotels and other laundry equipment manufacturers. The main products are: Various specifications of industrial washing machine, dehydrator, industrial dryer...
